Grease Cups
A screw-type grease cup engineered for manual, controlled grease delivery on equipment where automated fittings are impractical. A knurled cap gives hand grip and advances by thread to feed grease into the bearing at a controlled rate.
Screw Type

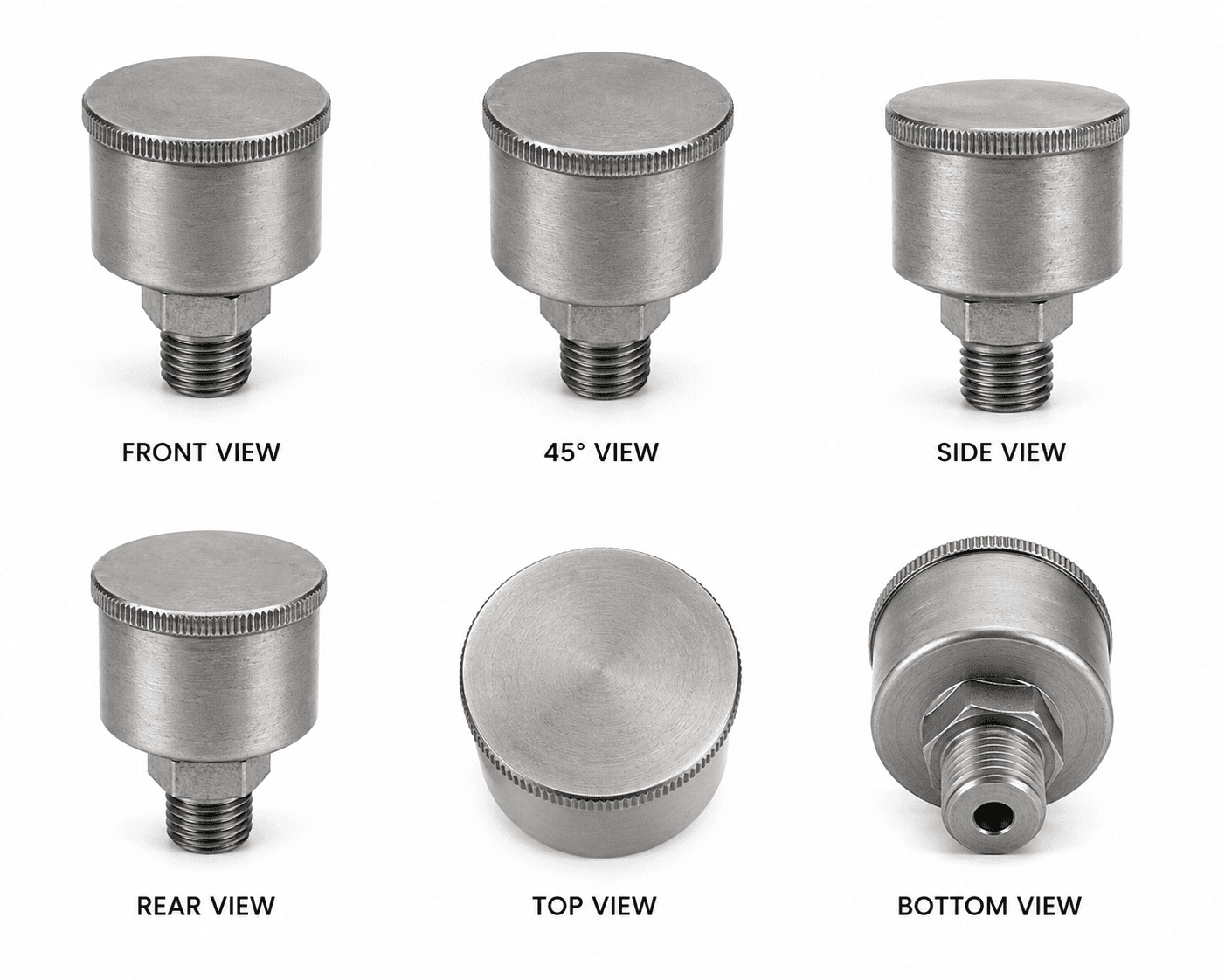

Knurled cap threaded onto the body, advanced by hand to feed a metered, repeatable charge of grease into the bearing on each turn.
Application
Wear-heavy lubrication points on mining and heavy construction equipment where manual, on-demand grease delivery is preferred over cartridge or nipple systems.
Thread Standards
Available in this range
| Standard | Sizes |
|---|---|
| Metric (DIN 71412) | M8, M10, M12 |
| BSP (BS 1486) | 1/4", 3/8" |
Materials
- Mild Steel
- Brass
Finishes
- Zinc Plated
- Natural Brass
Specification
Performance data
- Working Pressure
- Manual actuation
- Temperature Range
- -10°C to +100°C
- Sealing / Type
- Threaded cap compression
Precision, in Practice
Thread engagement is held tight enough that the cap advances smoothly under hand pressure without cross-threading. That is a common failure point in lower-cost cast alternatives.
Where It's Used
Industries & Applications
Mining

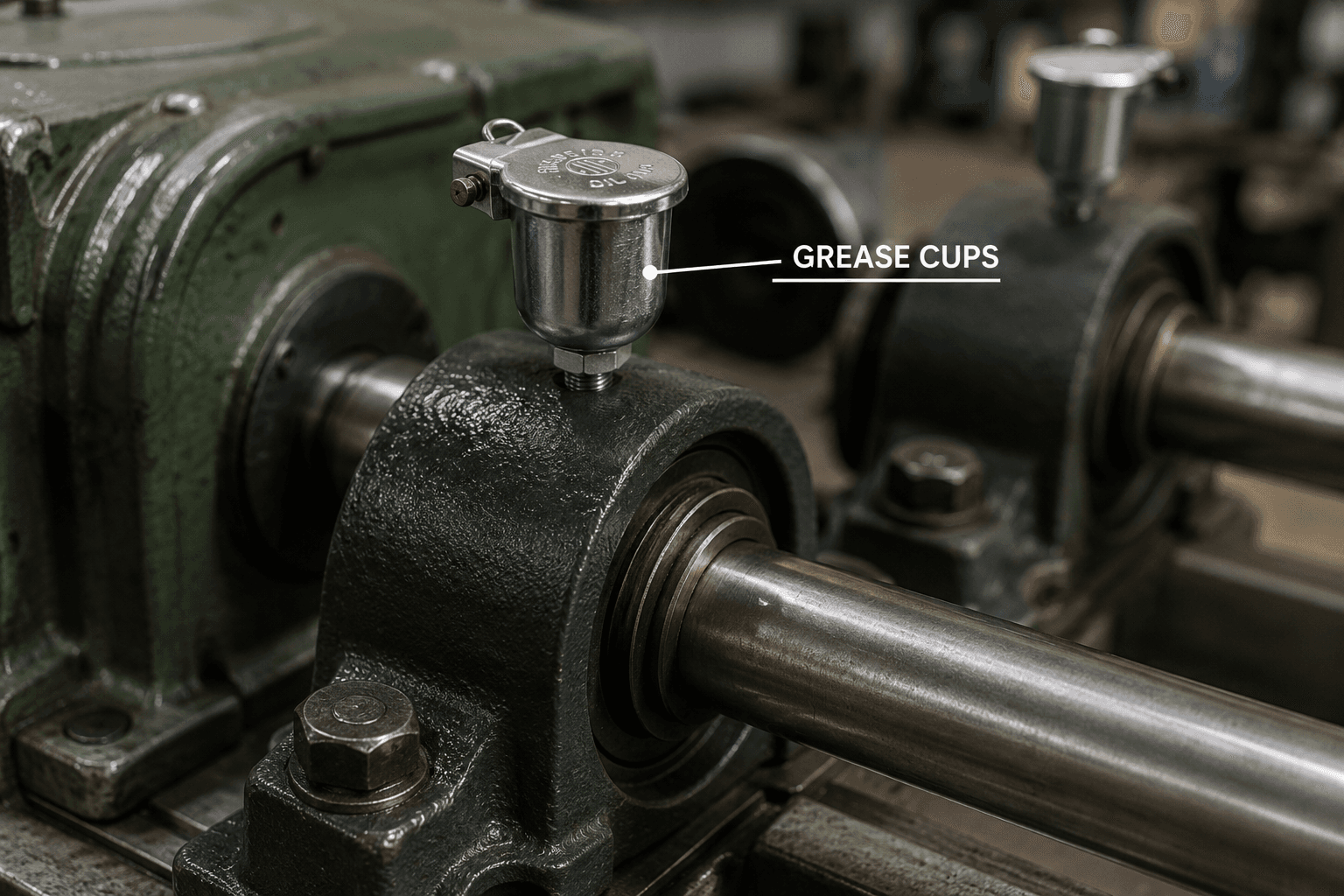

Manually serviced bearing points on crushers and screens where automated lines aren't run.
Construction
Heavy equipment pivot and bearing points serviced on a fixed maintenance schedule.
Textile Machinery

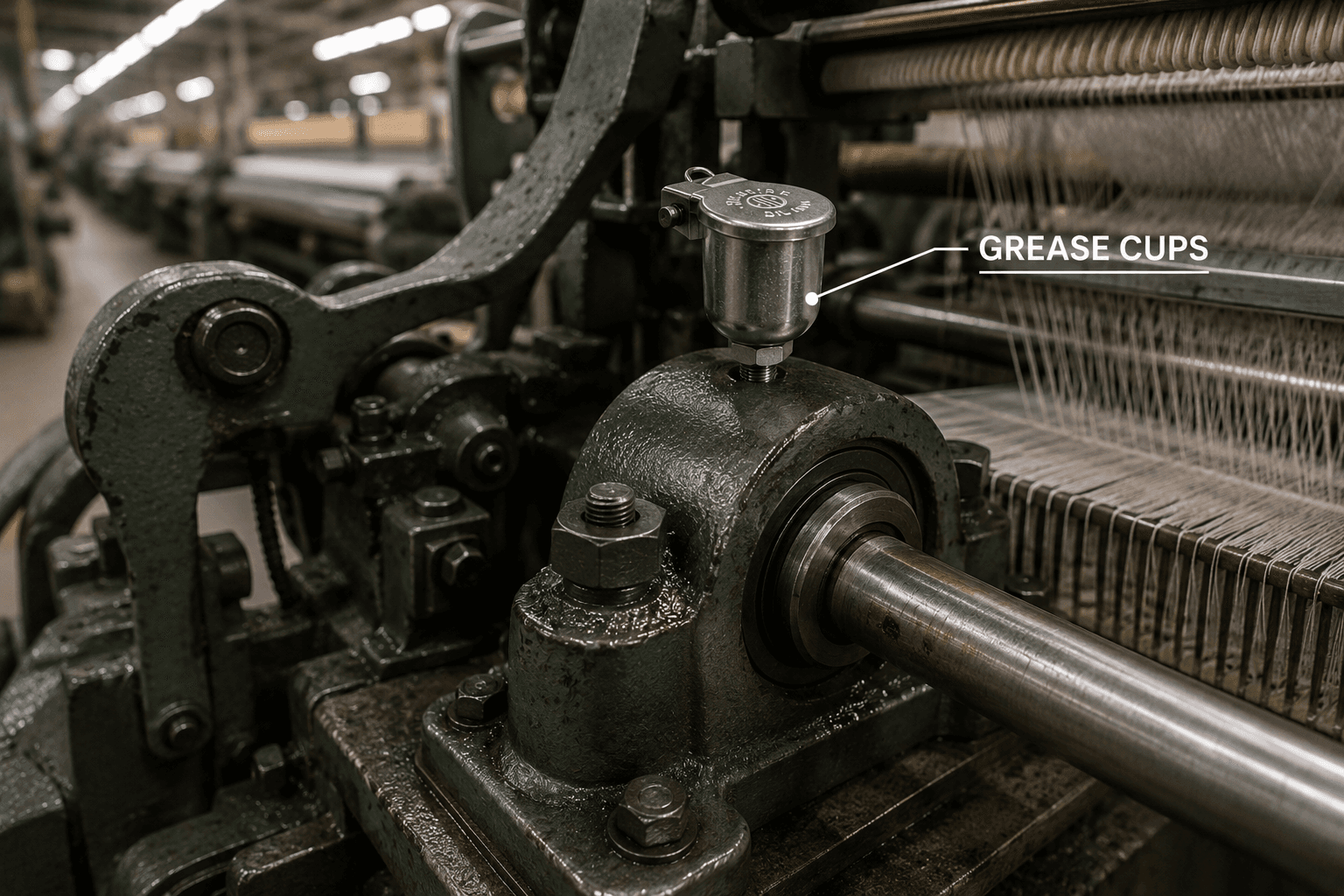

Loom and spindle bearing points serviced by hand on a fixed rotation.
Marine

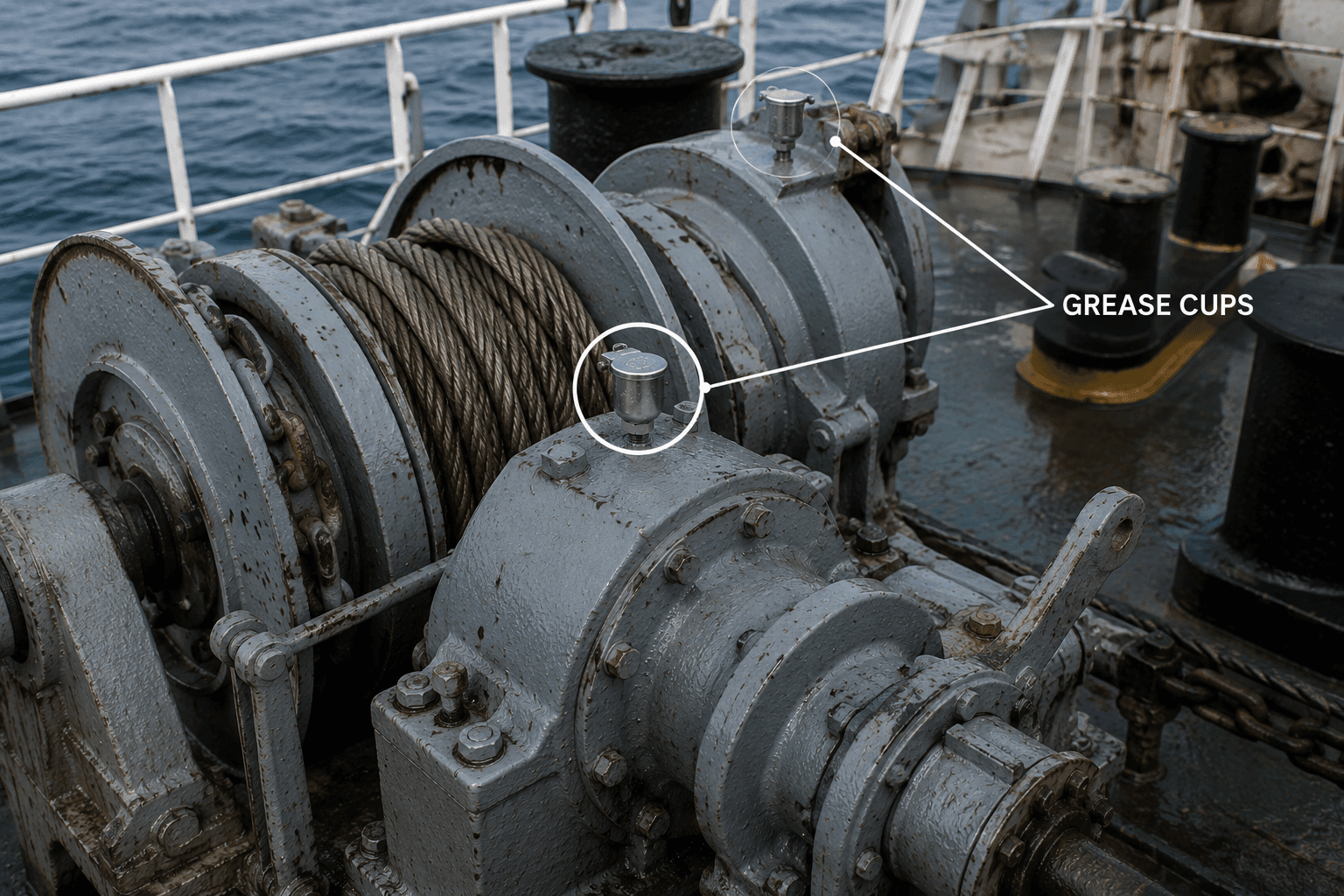

Deck winch and wire-rope bearing points on marine equipment, greased manually during rounds.
Heavy Machinery
Legacy equipment designed around manual grease cups rather than nipple-and-gun servicing.
Ordering Information
Placing a first order
MOQ
500 units per SKU
Standard Pack
50 pcs polybag / 500 pcs carton
Lead Time
21 working days from confirmed PO
