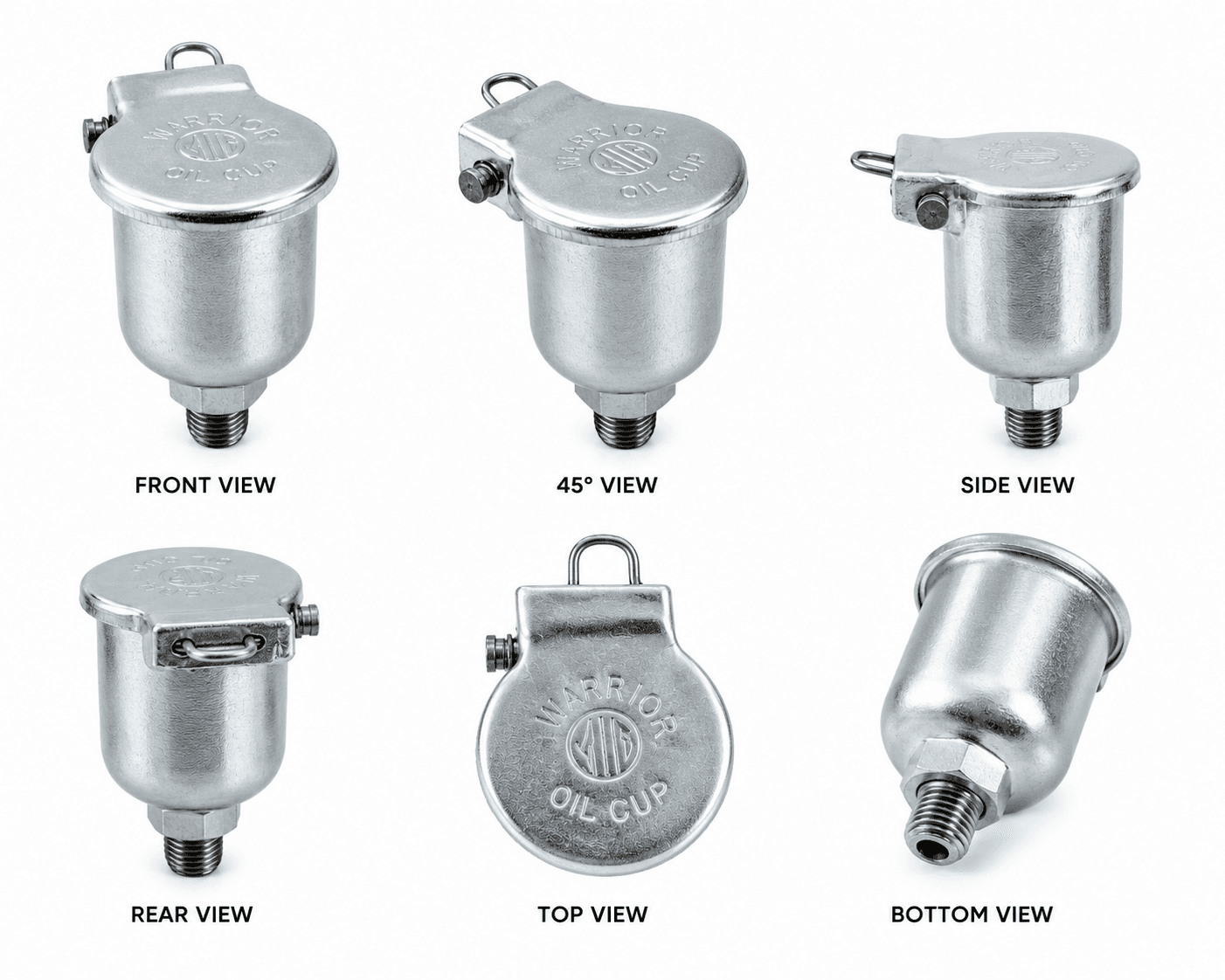

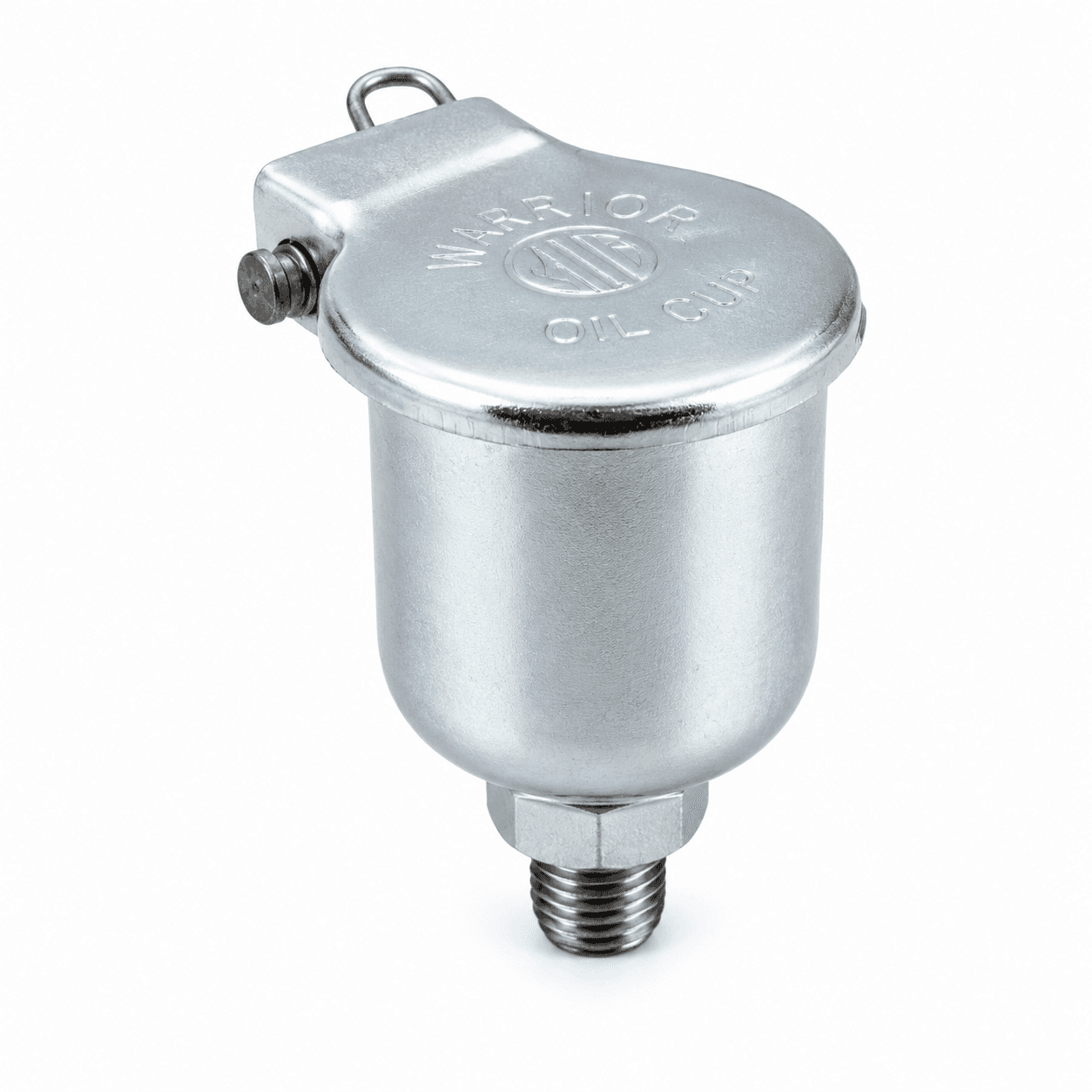

Oil Cups
Steel oil cups for lubrication points that run on oil rather than grease. A sealed reservoir with a positive-closing lid keeps the fill clean between top-ups and gives a maintenance technician an immediate visual check of oil presence.
Screw Type
Positive-closing lid on a threaded body, sealing the reservoir against dust and splash between fills. Engraved for easy identification on a busy panel of fittings.
Application
Machinery lubrication points where oil, rather than grease, is the specified lubricant. Used on bearings, slideways, and gearcases on production and processing equipment.
Thread Standards
Available in this range
| Standard | Sizes |
|---|---|
| Metric (DIN 71412) | M6, M8, M10, M12 |
| BSP (BS 1486) | 1/8", 1/4", 3/8" |
Materials
- Mild Steel
- Zinc-Plated Steel
Finishes
- Zinc Plated
- Nickel Plated
Specification
Performance data
- Working Pressure
- Gravity-fed, non-pressurised
- Temperature Range
- -10°C to +90°C
- Sealing / Type
- Hinged lid closure with positive latch
Precision, in Practice
The lid latch is set to stay closed under vibration but open with one hand, so a technician on a moving line can top up without losing rhythm.
Where It's Used
Industries & Applications
General Machinery
Bearing and slideway lubrication points on production equipment run on a scheduled top-up cycle.
Textile Machinery
High-speed spindle and roller bearings that need frequent, small oil additions.
Industrial Equipment
Gearcases and open bearings on processing lines where oil is specified over grease.
Ordering Information
Placing a first order
MOQ
500 units per SKU
Standard Pack
50 pcs polybag / 500 pcs carton
Lead Time
21 working days from confirmed PO
