Grease Nipples
The core of the Rushabh range. Spring-loaded ball-check fittings that accept grease under pressure and seal against contamination between service intervals, machined to Metric, BSP, and NPT standards from a single Rajkot facility. Select a type below to see its exact specification and photography.
Select a Type
Six angles, one precision standard

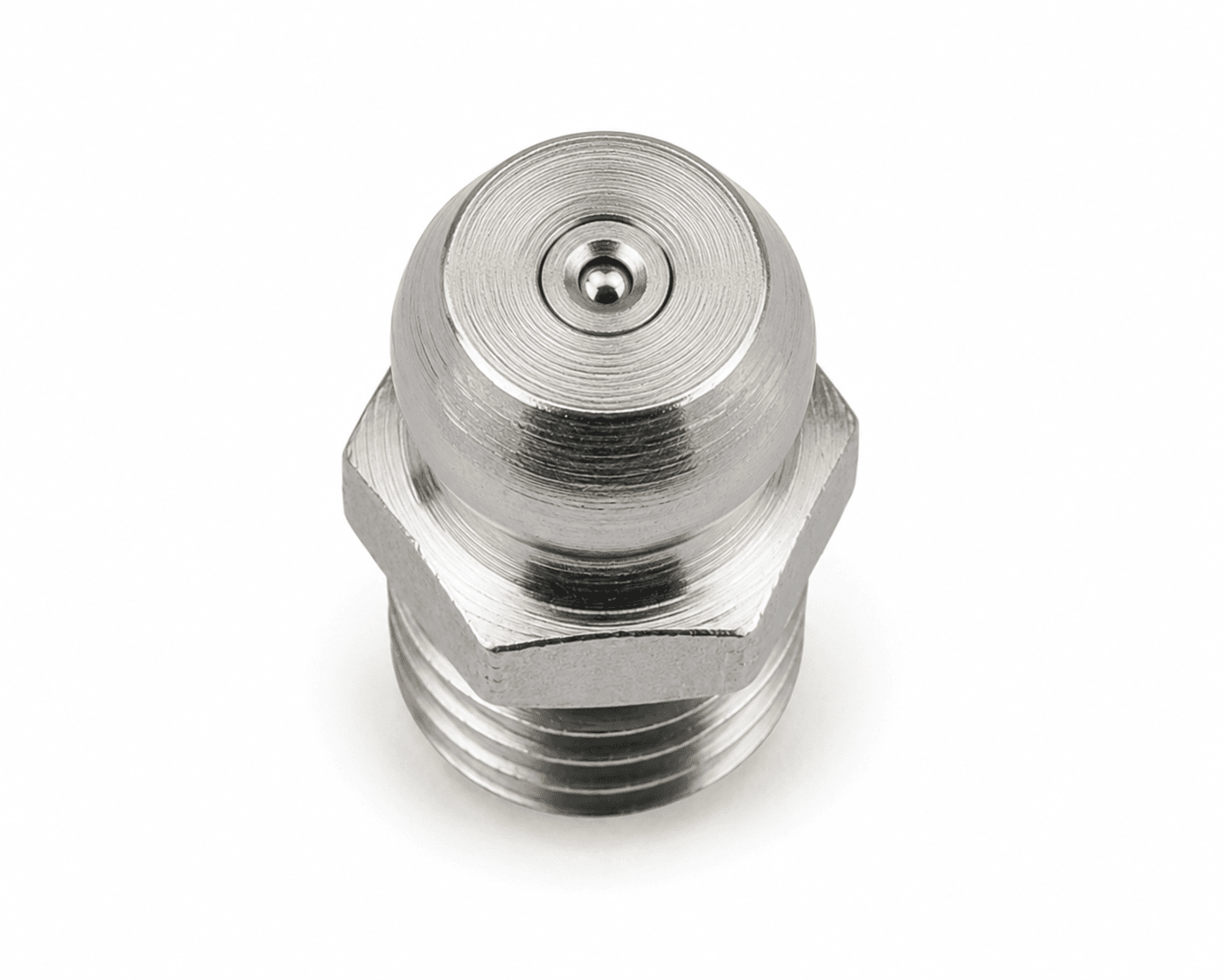

Straight
0°The standard in-line fitting for open, easily accessible lubrication points. The most commonly specified type across automotive and general machinery.
Application

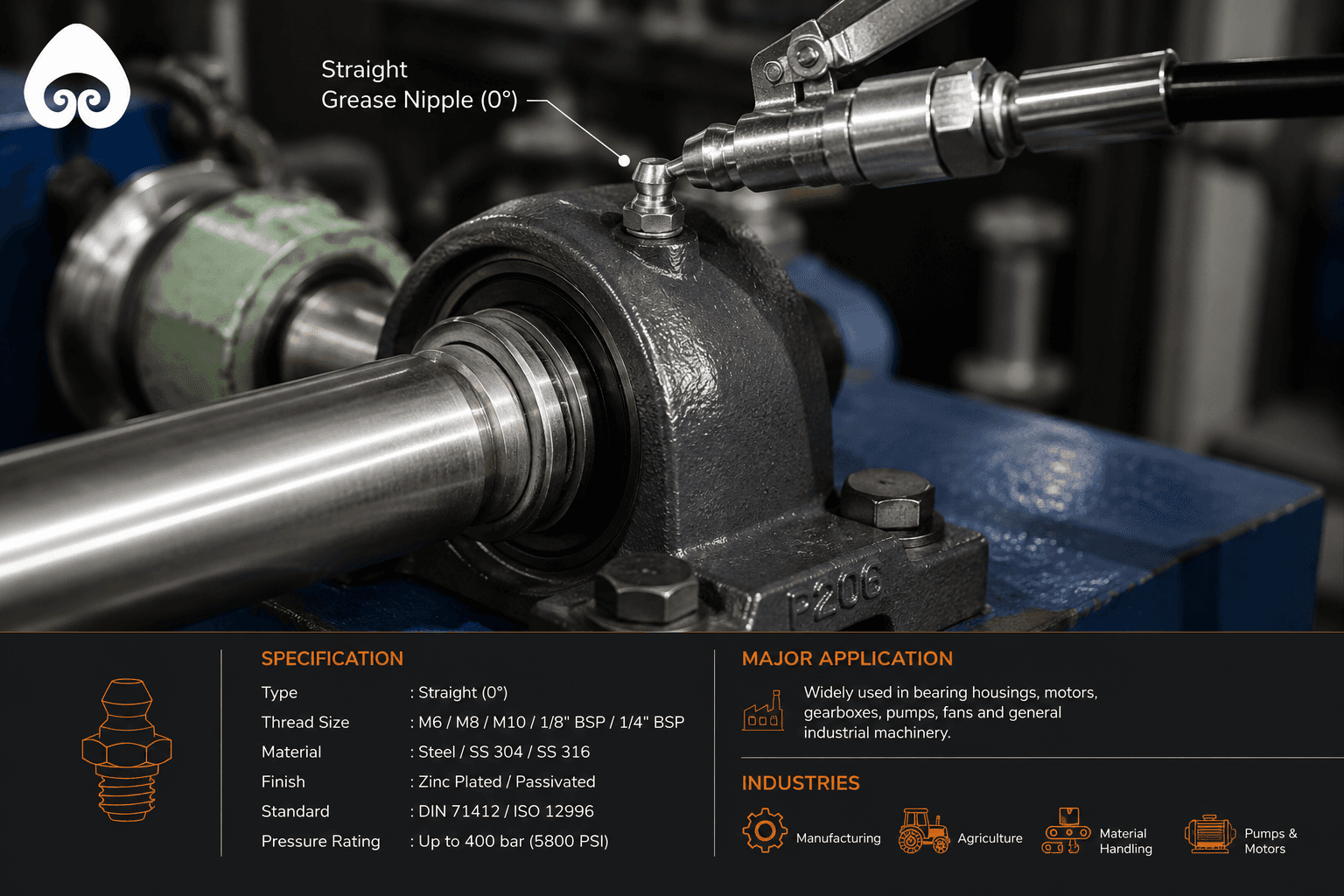

Widely used in bearing housings, motors, gearboxes, pumps, fans, and general industrial machinery.
Dimensions
Full dimensional drawing available on request from our export desk.
Thread Sizes in This Type
Industries for This Type
Manufacturing
Used in conveyor systems, bearing housings, and general factory equipment.
Agriculture
Ideal for tractors, harvesters, and other farm machinery with regular greasing needs.
Material Handling
Suited to forklifts, conveyors, and warehouse handling equipment.
Pumps & Motors
Standard lubrication point on pump and motor bearing housings.
Thread Standards
Available in this range
| Standard | Sizes |
|---|---|
| Metric (DIN 71412 / ISO 12996) | M6 x 1.0, M8 x 1.0, M8 x 1.25, M10 x 1.0, M10 x 1.5 |
| BSP (BS 1486) | 1/8" BSP, 1/4" BSP |
| NPT (SAE J534) | 1/8" NPT, 1/4" NPT |
Materials
- Steel
- Stainless Steel (SS 304)
- Stainless Steel (SS 316)
Finishes
- Zinc Plated
- Passivated
Specification
Performance data
- Working Pressure
- Up to 400 bar (5,800 PSI)
- Temperature Range
- -30°C to +120°C
- Sealing / Type
- Ball check, spring loaded
Precision, in Practice
Every ball-check seat is machined and spring-tested to hold pressure and seal against contamination consistently, batch after batch. That is the detail that separates a fitting your maintenance team trusts from one they stop using.
Where It's Used
Industries & Applications
Automotive
Chassis pivots, suspension joints, and driveline U-joints on assembly and aftermarket service lines.
Construction
Excavator bucket pins, boom joints, and articulation points exposed to dust and vibration.
Agriculture
Tractor and implement pivot points serviced in the field, often with basic tooling.
Mining
High-cycle lubrication points on crushers and conveyors, where BSP fittings dominate.
Marine
Deck machinery and winch pivots, typically specified in stainless steel for corrosion resistance.
General Machinery
Bearing housings and slideways across manufacturing and processing equipment.
Ordering Information
Placing a first order
MOQ
500 units per SKU
Standard Pack
50 pcs polybag / 500 pcs carton
Lead Time
21 working days from confirmed PO
